PRO800plus

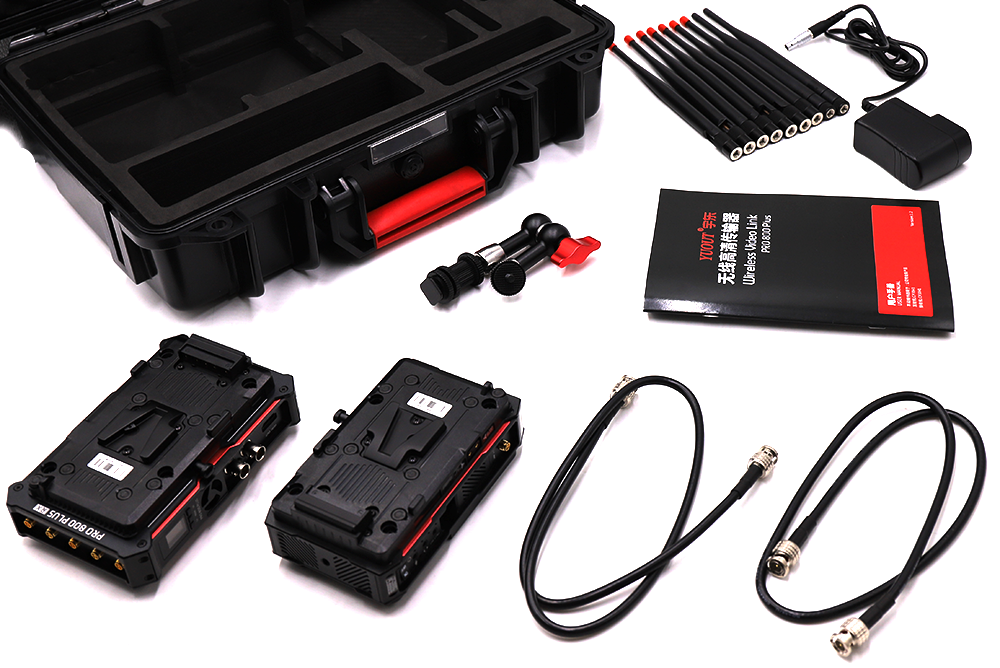

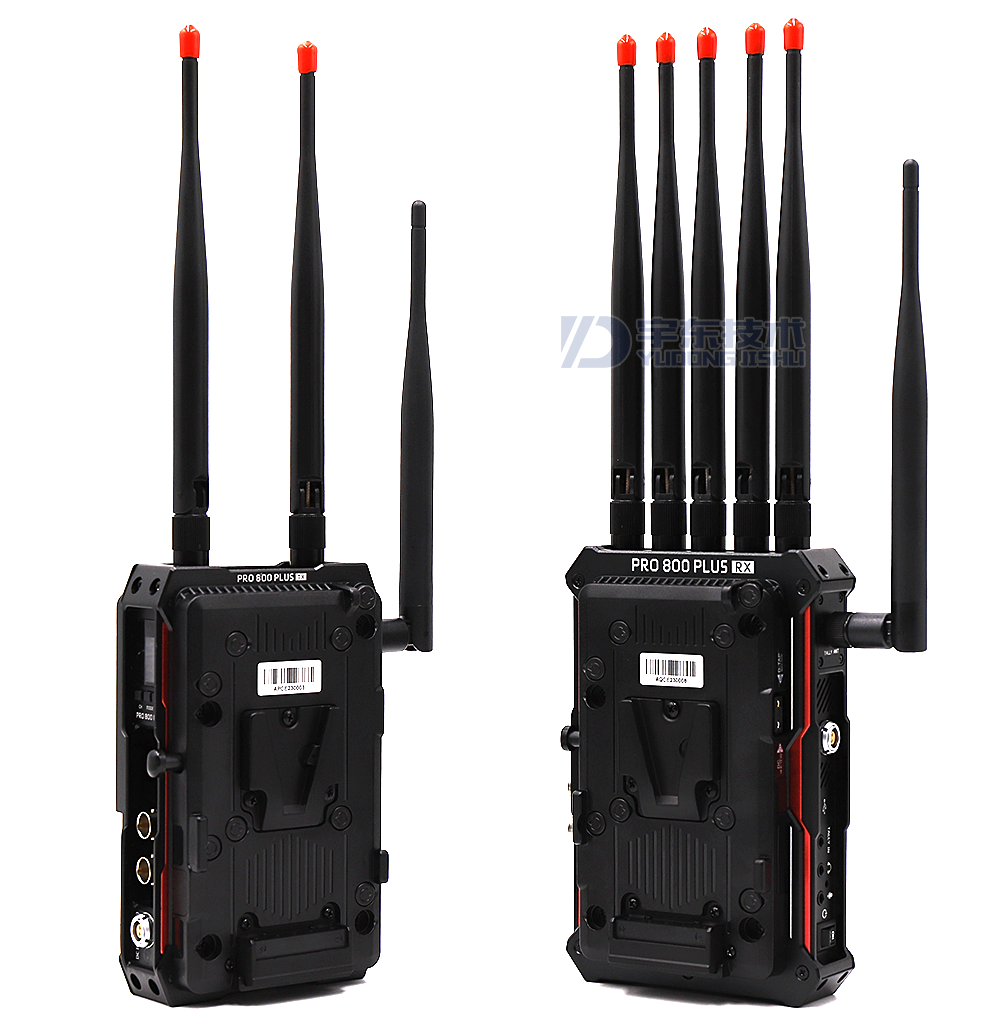

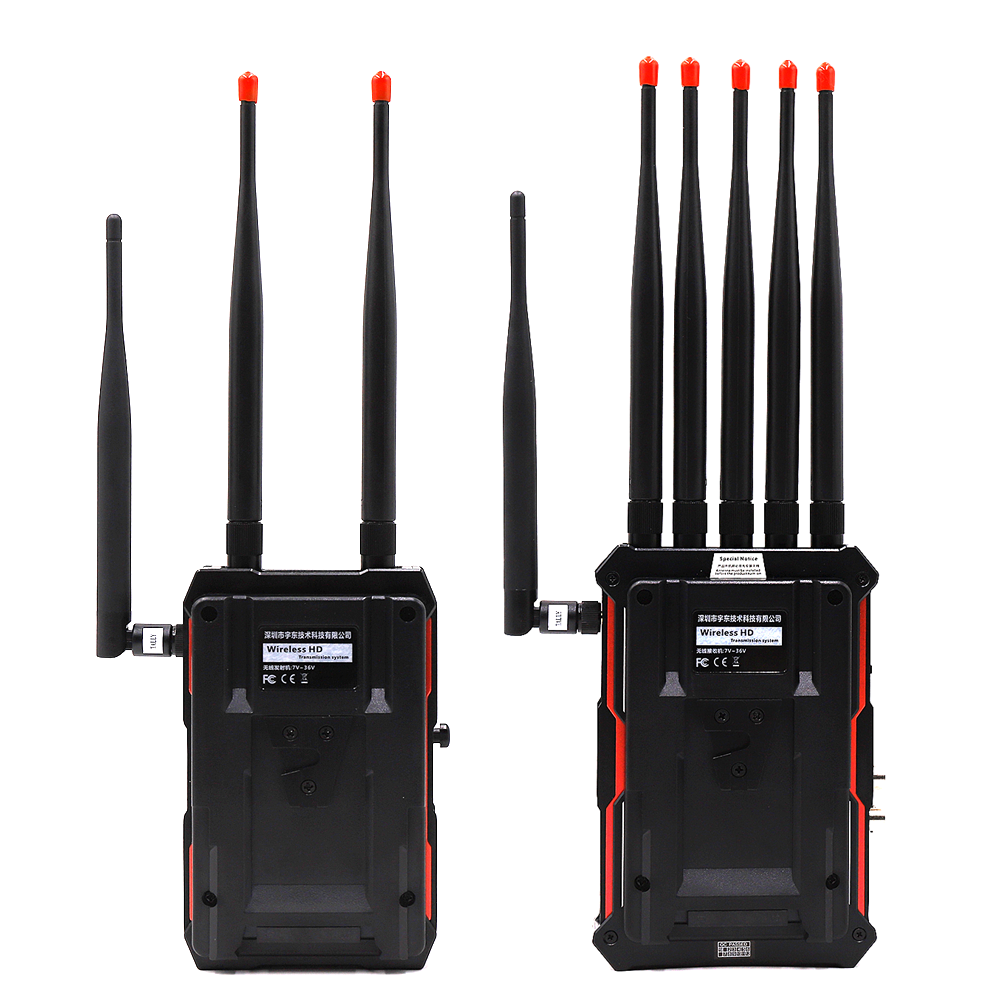

PRO800plus Video + Talk +TALLY wireless video transmission uses broadcast-grade Israeli technology solutions to achieve broadcasting level lossless, no compression, no delay 3G SDI or full HD HDMI signal transmission. This product includes a transmitter and a receiver, and both are equipped with 3G/HD SDI ports and full HD HDMI ports. The transmitter has three antennas and the receiver has six; All antennas operate in the 4.9GHz-5.9GHz frequency range, and the operating frequency of the antenna can be changed through software configuration to adapt to the wireless transmission requirements of different regions of the world. At the same time, on the side of the transmitter and receiver, equipped with a communication channel selection button, you can manually configure 11 different communication channels, very convenient.
Features:
1. Remote wireless, high-definition real-time - support wireless, real-time transmission of 1080P video, up to 800 meters
2. Tally output, wireless intercom - Support Tally signal output and wireless full-duplex intercom, up to 300 meters
3. Good compatibility, plug and play - no need for additional security software, support HDMI/SDI interface equipment, simple installation
4. Design precision, good mobility - equipped with standard screw and V buckle, support large-capacity battery installation, easy to move
|
|
發射機*1
|
接收機*1
|
|
發射功率
|
20dBm
|
/
|
|
接收靈敏度
|
/
|
圖傳：-70dBm Tally及對講：-85dBm
|
|
工作頻率
|
圖傳：5.1~5.9 (GHz) Tally及對講：ISM 2400~2525MHz
|
|
|
天線方式
|
采用外置天線
|
|
|
整機功耗
|
12W
|
7~8W
|
|
工作電壓
|
7V~36V
|
|
|
視頻格式
|
480i, 480p(SDI不支持),576i, 576p(SDI不支持), 720p, 1080i, 1080p
|
|
|
音頻格式
|
PCM, DTS-HD, Dolby True HD
|
|
|
傳輸距離
|
空曠距離最遠可達約800米（與CP03041配套使用），Tally及對講最遠可達約300米
|
圖傳：空曠距離最遠可達約800米（與CP07041配套使用）
Tally及對講：最遠距離可達300米 |
|
產品尺寸
|
153.2(L)×93(W)×67.7(H)
|
162.7(L)×107.5(W)×68.3(H)
|
|
LCD屏顯示
|
頻點設置，信號強度指示，連接狀態顯示等
|
|
|
機械接口
|
V型電池扣板、? 1/4"專業固定螺絲孔
|
|
|
溫度范圍
|
-10 ~ 50°C（工作溫度）；-40~80°C（存儲溫度）
|
-10 ~ 60°C（工作溫度）；-40~80°C（存儲溫度）
|
|
信道帶寬
|
40MHz
|
|
