          首頁
			?
			Product
			?
			300m~800m Wireless





















                        350m HDMI SDI Wireless








          350m HDMI SDI Wireless






          YD-LY3501-DS


          Our advantage
1, transmitter 2 SDI interface, 1 HDMI interface, one of the SDI local loop out, can be connected to an SDI monitor.
2, the receiver is equipped with V-port buttonboard and F970 buttonboard, you can freely choose to use F970 battery and V-port battery.
3, visual distance up to 350 meters +, the same parameter map transmission, we have more cost-effective.
4, no compression, zero delay, the same Israeli technology.
5, the receiver has 2 SDI interfaces and 1 HDMI interface, can be output at the same time, connected to 2 SDI and 1 HDMI monitor, very convenient.
6, support channel scanning function, scene sweep out serious interference frequency points.
7, support antenna bad detection function, antenna quality directly affects product performance, we can find out the bad antenna replacement through technical treatment.
8, can be upgraded universal version receiver, can receive peer zero delay graph transmission transmitter signal. (This function is not standard or o





                        立即咨詢




























        01
        產品概述











          頻道掃描和天線檢測功能介紹

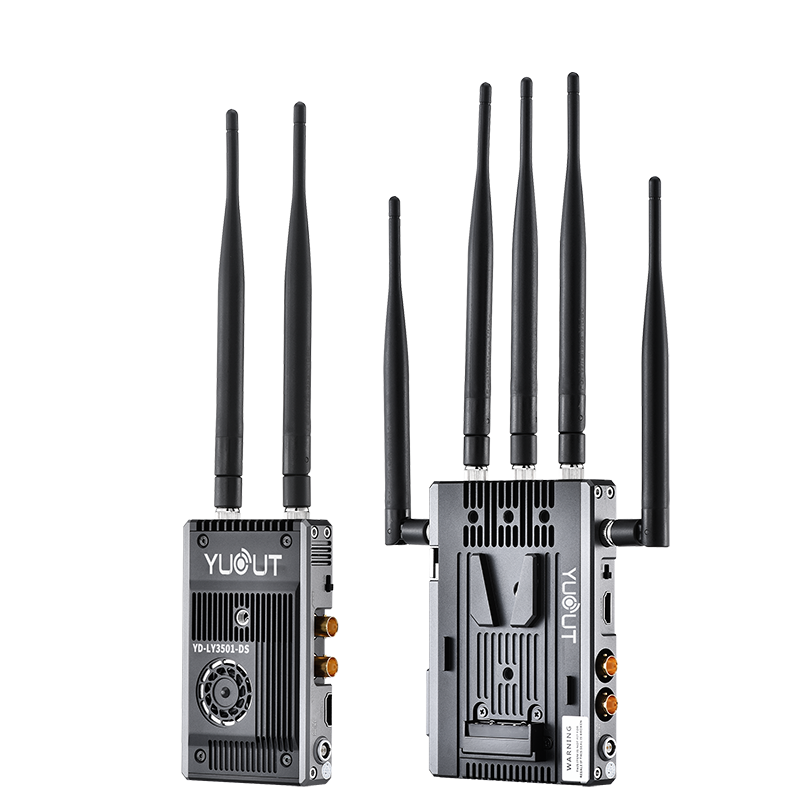

        YD-LY3501-DS It uses broadcast-grade Israeli technology solutions to achieve broadcasting level lossless, no compression, no delay 3G SDI or full HD HDMI signal transmission. This product includes a transmitter and a receiver, and both are equipped with 3G/HD SDI ports and full HD HDMI ports. The transmitter has two antennas and the receiver has five; All antennas operate in the 4.9GHz-5.9GHz frequency range, and the operating frequency of the antenna can be changed through software configuration to adapt to the wireless transmission requirements of different regions of the world. At the same time, on the side of the transmitter and receiver, equipped with a communication channel selection button, you can manually configure 10 different communication channels, very convenient.





















        02
        產品特點







          Our advantage

1, transmitter 2 SDI interface, 1 HDMI interface, one of the SDI local loop out, can be connected to an SDI monitor.

2, the receiver is equipped with V-port buttonboard and F970 buttonboard, you can freely choose to use F970 battery and V-port battery.

3, visual distance up to 350 meters +, the same parameter map transmission, we have more cost-effective.

4, no compression, zero delay, the same Israeli technology.

5, the receiver has 2 SDI interfaces and 1 HDMI interface, can be output at the same time, connected to 2 SDI and 1 HDMI monitor, very convenient.

6, support channel scanning function, scene sweep out serious interference frequency points.

7, support antenna bad detection function, antenna quality directly affects product performance, we can find out the bad antenna replacement through technical treatment.

8, can be upgraded universal version receiver, can receive peer zero delay graph transmission transmitter signal. (This function is not standard or optional)














        03
        產品參數















			發射器


			接收器






			接口


			SDI 輸入（BNC 母頭）;

HDMI 輸入 (Type A 母頭);

2 天線接口 (PR-SMA 公頭);

DC 輸入 (2針 LEMO 母頭)


			SDI 輸出（BNC 母頭）;

HDMI 輸出 (Type A 母頭);

DC 輸入 (2 針 LEMO 母頭)






			供電電壓范圍


			7-18V DC


			7-18V DC






			功耗


			<7W


			< 9.5W






			成品尺寸


			(長x寬x高): 72×120×20mm

不包含外接天線


			(長x寬x高): 142×100×22mm

不包含外接天線






			輸入視頻格式


			HDMI: 525i, 625i, 720p 50/59.94/60,

1080i 50/59.94/60,

1080p 23.98/24/25/29.9/30/50/59.94/60;

HDMI Type A;

SDI: 3G, HD, and SD-SDI (auto-selected),

SMPTE-259/274/292/296/372/424/425;

1 x BNC


			/






			輸出視頻格式


			/


			HDMI: 525i, 625i, 720p 50/59.94/60,1080i 50/59.94/60, 1080p23.98/24/25/29.9/30/50/59.94/60;

HDMI Type A

SDI: 3G, HD, and SD-SDI (auto-selected),

SMPTE-259/274/292/296/372/424/425;

1x BNC






			頻帶


			4.9-5.9GHz，可調整為中國、北美、歐洲的相應頻帶


			4.9-5.9GHz，可調整為中國、北美、歐洲的相應頻帶






			傳輸距離/延時


			空曠距離最遠可達約350米


			無壓縮零延時






			發射功率


			Maximum 17dBm


			/






			接收靈敏度


			/


			-75dBm






			帶寬


			40MHz


			40MHz






			溫度范圍


			0 ~ 40°C (工作情況); -20~60°C(儲存情況)


			0 ~ 40°C (工作情況); -20~60°C(儲存情況)






			屏幕


			0.96 inch OLED


			0.96 inch OLED

















        04

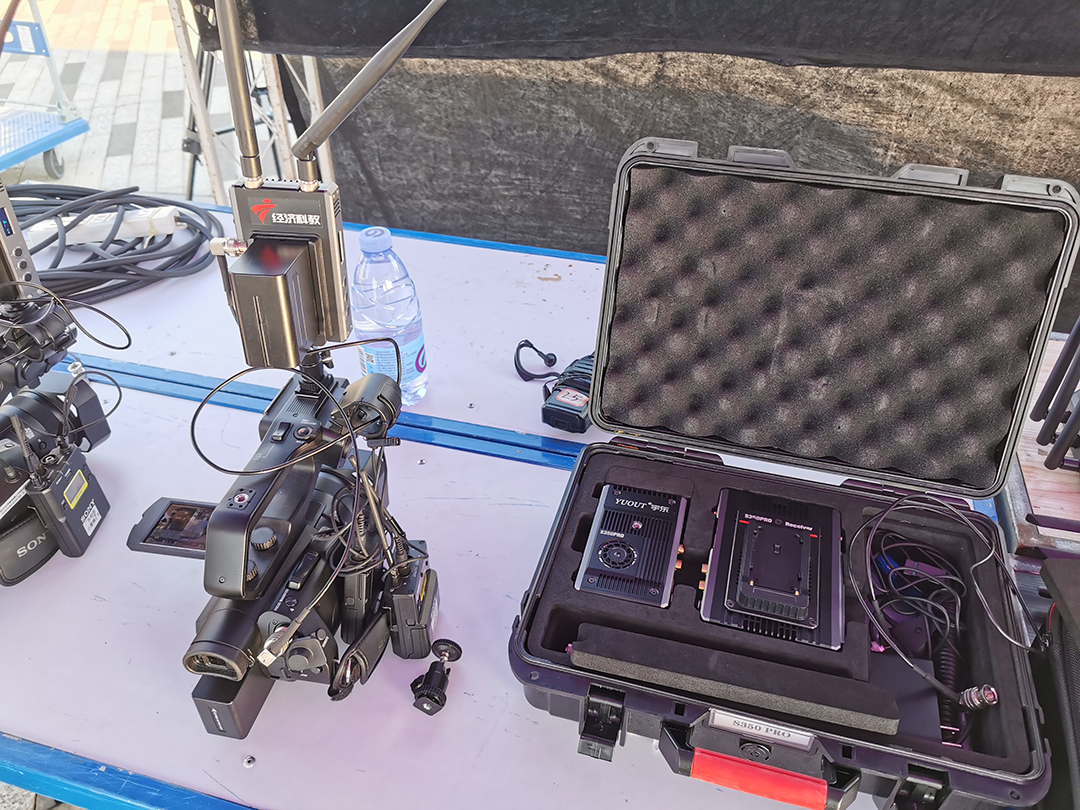

        應用場景
